10kW 3-phase grid-tied inverter with dual MPPT trackers, high efficiency, and rugged outdoor-ready construction. Ideal for larger residential or commercial solar systems.

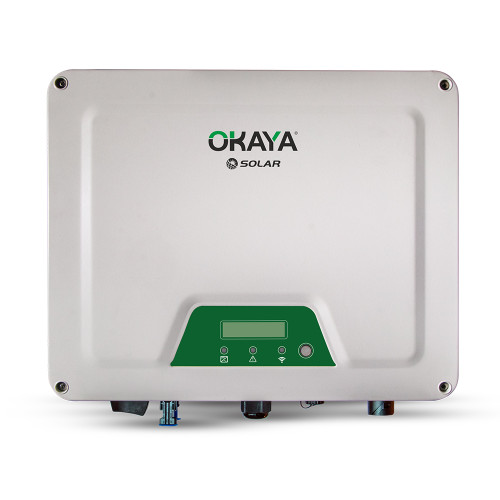

The Okaya Solar GTI 10kW P3 offers high-performance solar conversion with a 12kW peak DC input, dual MPPT trackers, and a wide voltage range (150–1000V). With a 98% conversion efficiency, advanced surge protection, and optional DC switch, it’s built for safe and reliable operation. The IP65 enclosure ensures weatherproof durability, while the LED display keeps monitoring simple. It meets BIS and IEC certification requirements and offers a dependable 10-year warranty for peace of mind in demanding solar installations.
• Up to 98% Efficiency - Generates more energy from the same sunlight—maximizing ROI.
• Wide MPPT Voltage Range - Starts efficiently even in low sunlight or varied weather.
• 120% DC Input Overload & 1100V DC Input Support - Enables greater panel input flexibility and longer string designs.
• Smart String-Level Monitoring - Tracks the performance of individual strings for faster diagnostics.
• Fanless Natural Cooling Design - Silent operation makes it perfect for noise-sensitive environments.
• Dual MPPT Technology - Ideal for installations with different orientations or shading.
• Rated AC output power: 10 kW (three-phase)
• Max. peak DC input power: 12 kW
• Max. DC input voltage: 1000 V
• MPPT architecture: 2 MPPT trackers (strings per MPPT: 1)
• MPPT tracking voltage range: 150 – 1000 V
• Min. start voltage: 150 / 180 V
• Max. MPPT input current: 13 A
• MPPT short-circuit current: 20 A
• Rated grid voltage: 380 / 400 / 415 V (operating window 300 V – 500 V)
• Max. AC output current: 14.5 A
• AC connection: 3P + N + E (plug-in connector)
• Max. conversion efficiency: 98%
• Protections integrated: anti-islanding, insulation resistance detection, residual current monitoring, over-voltage protection, surge protection
• DC switch: Optional
• Cooling: Natural convection + smart fan cooling for stable operation
• Communication & monitoring: Wi-Fi / GPRS / RS-485 (for remote monitoring & SCADA integration)
• DC connection type: MC-4
• Display: LED with LCD display for local status and diagnostics
• Noise emission: < 30 dB (quiet operation)
• Protection class / Outdoor rating: IP65 (dust-tight, water-resistant)
• Operating ambient temperature: −25 °C to +60 °C
• Relative humidity: 0% – 100%
• Max. operating altitude: 2000 m (derating above 2000 m)
• Night standby power consumption: < 1 W
• Dimensions (W×H×D): 425 × 351 × 160 mm
• Weight: 13.7 kg (±200 g)
• Standard warranty: 10 years
• Certifications: BIS; IEC 62109-1/2; IEC 61727; IEC 61683; IEC 60068; IEC 62116; IEC 61000 EMC
