3.4kW high-performance grid-tied inverter with advanced MPPT control, broad input range, and proven reliability for residential solar systems.

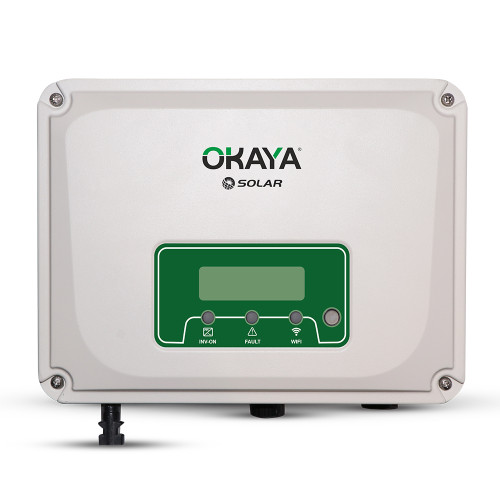

The Okaya Solar GTI 3.4KW P1 is engineered for homeowners seeking higher output without compromising efficiency or reliability. It supports a wide operating voltage range and features MPPT technology to ensure maximum solar power yield under varying sunlight conditions. Built with integrated safety features, it operates quietly, requires minimal maintenance, and provides seamless grid integration. With a compact footprint and lightweight body, it’s an installer-friendly solution for long-term solar savings.
• High Efficiency (up to 98%) - Converts more solar energy into usable electricity, reducing your grid consumption.
• DC Input Overload Capacity (120%) - Allows more solar panel input to cater to future needs without replacing the inverter.
• Compact & Lightweight Design - Enables easy wall mounting even in tight spaces.
• Weather Protection – IP65 Rated - Withstands monsoons, dust, and extreme temperatures.
• Connectivity Options - RS485, USB, and Wi-Fi allow seamless monitoring and control via mobile app.
• Feed-in Limitation Support - Ensures safe integration with utility regulations.
• Monitoring via Mobile App - Real-time performance tracking and remote alerts via Wi-Fi dongle.
• Rated Output Power: 3.4kW
• Max. Peak DC Input Power: 4.08kW
• Max. DC Input Voltage: 550 V
• MPPT Voltage Range: 70 V – 550 V
• No. of MPPTs / Strings per MPPT: 1 MPPT / 1 String
• Max. Output Current (AC): 14.7 A
• Grid Output Voltage Range: 140 V – 300 V (230 V rated)
• Conversion Efficiency (Max.): 98%
• Dimensions (W×H×D): 297 x 223 x 117 mm
• Weight: 4.5 kg
• IP Rating: IP65 – Dust-tight and water-resistant for outdoor use
• Operating Temperature Range: –25°C to +60°C
• Anti-islanding, over-voltage & surge protection
• Natural convection cooling, <30dB noise level
• IP65 protection for outdoor use
• 10-year standard warranty
• Display: LCD Display with LEDs
• Certifications: BIS, IEC 62109-1/2, IEC 61727, IEC 61683, IEC 60068, IEC 62116, IEC 61000 EMC
