3.4kW high-performance grid-tied inverter with advanced MPPT control, broad input range, and proven reliability for residential solar systems.

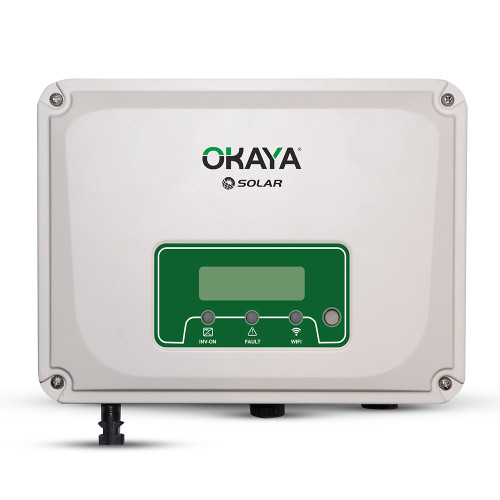

The Okaya Solar GTI 3.4KW P1 is engineered for homeowners seeking higher output without compromising efficiency or reliability. It supports a wide operating voltage range and features MPPT technology to ensure maximum solar power yield under varying sunlight conditions. Built with integrated safety features, it operates quietly, requires minimal maintenance, and provides seamless grid integration. With a compact footprint and lightweight body, it’s an installer-friendly solution for long-term solar savings.
• High Efficiency (up to 98%) - Converts more solar energy into usable electricity, reducing your grid consumption.
• DC Input Overload Capacity (120%) - Allows more solar panel input to cater to future needs without replacing the inverter.
• Compact & Lightweight Design - Enables easy wall mounting even in tight spaces.
• Weather Protection – IP65 Rated - Withstands monsoons, dust, and extreme temperatures.
• Connectivity Options - RS485, USB, and Wi-Fi allow seamless monitoring and control via mobile app.
• Feed-in Limitation Support - Ensures safe integration with utility regulations.
• Monitoring via Mobile App - Real-time performance tracking and remote alerts via Wi-Fi dongle.
• Rated Output Power: 3.4kW
• Max. Peak DC Input Power: 4.08kW
• Max. DC Input Voltage: 550 V
• MPPT Voltage Range: 70 V – 550 V
• No. of MPPTs / Strings per MPPT: 1 MPPT / 1 String
• Max. Output Current (AC): 14.7 A
• Grid Output Voltage Range: 140 V – 300 V (230 V rated)
• Conversion Efficiency (Max.): 98%
• Dimensions (W×H×D): 297 x 223 x 117 mm
• Weight: 4.5 kg
• IP Rating: IP65 – Dust-tight and water-resistant for outdoor use
• Operating Temperature Range: –25°C to +60°C
• Anti-islanding, over-voltage & surge protection
• Natural convection cooling, <30dB noise level
• IP65 protection for outdoor use
• 10-year standard warranty
• Display: LCD Display with LEDs
• Certifications: BIS, IEC 62109-1/2, IEC 61727, IEC 61683, IEC 60068, IEC 62116, IEC 61000 EMC
The choice depends on the size of your solar panel array. This 3.4KW inverter supports a higher maximum DC input of 4.08kW compared to 3.6kW on the 3KW model, while also handling higher AC output current. If you're planning to install a solar array in the 3.4–4kW range, this model allows you to utilize more of your system's output and helps avoid power clipping without any additional investment.
Yes. With a weight of only 4.5 kg, the inverter is compact and suitable for installation on most standard masonry or concrete walls using the supplied mounting bracket. However, if the inverter is being installed on a hollow, lightweight, or non-standard wall, your installer should verify that the mounting surface can safely support the unit.
Yes. The inverter features an MPPT operating range starting at 70V, allowing it to begin tracking and converting solar energy even under lower light conditions. This helps extend the daily generation window by producing usable power earlier in the morning and later in the evening compared to systems that require a higher start-up voltage.
The inverter is designed to operate in temperatures ranging from -25°C to +60°C and uses natural convection cooling, eliminating the need for cooling fans. While this makes the inverter quieter and more reliable, it is still recommended to install it in a well-ventilated location and avoid fully enclosed spaces to ensure optimal thermal performance and long-term reliability.
This inverter complies with several internationally recognized safety and performance standards, including BIS certification, IEC 62109 for electrical safety, IEC 61727 and IEC 62116 for grid-interconnection performance, and IEC 61000 for electromagnetic compatibility. These independent certifications verify that the inverter meets established industry requirements for safety, reliability, and grid operation.
Yes. The inverter comes with a 10-year (120-month) warranty, and maintaining warranty coverage generally requires installation by a qualified professional in accordance with the manufacturer's guidelines. For complete warranty registration and installation requirements, it is advisable to confirm the applicable terms with your authorized Okaya dealer at the time of purchase.
