Designed for robust solar power continuity, 3KVA Solar PCU model suits heavy household use and small commercial applications. Stable output, efficiency, and durability in one unit.

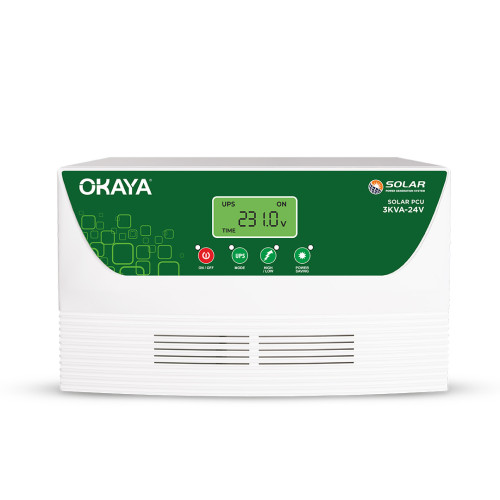

The Okaya 3KVA-24V Solar PWM PCU is a powerful off-grid solution built for larger homes, small commercial facilities, and remote installations with significant energy requirements. Utilizing TwinCharge technology, it delivers efficient solar utilization and smooth switching between solar, grid, and battery power. It supports a 24V battery bank with high backup capabilities and provides true sine wave output for safe appliance operation. Enhanced protection features and intelligent charging algorithms ensure long-term reliability and lower energy costs. Designed for performance and durability, this unit is a perfect choice for customers upgrading to a more capable solar backup system.

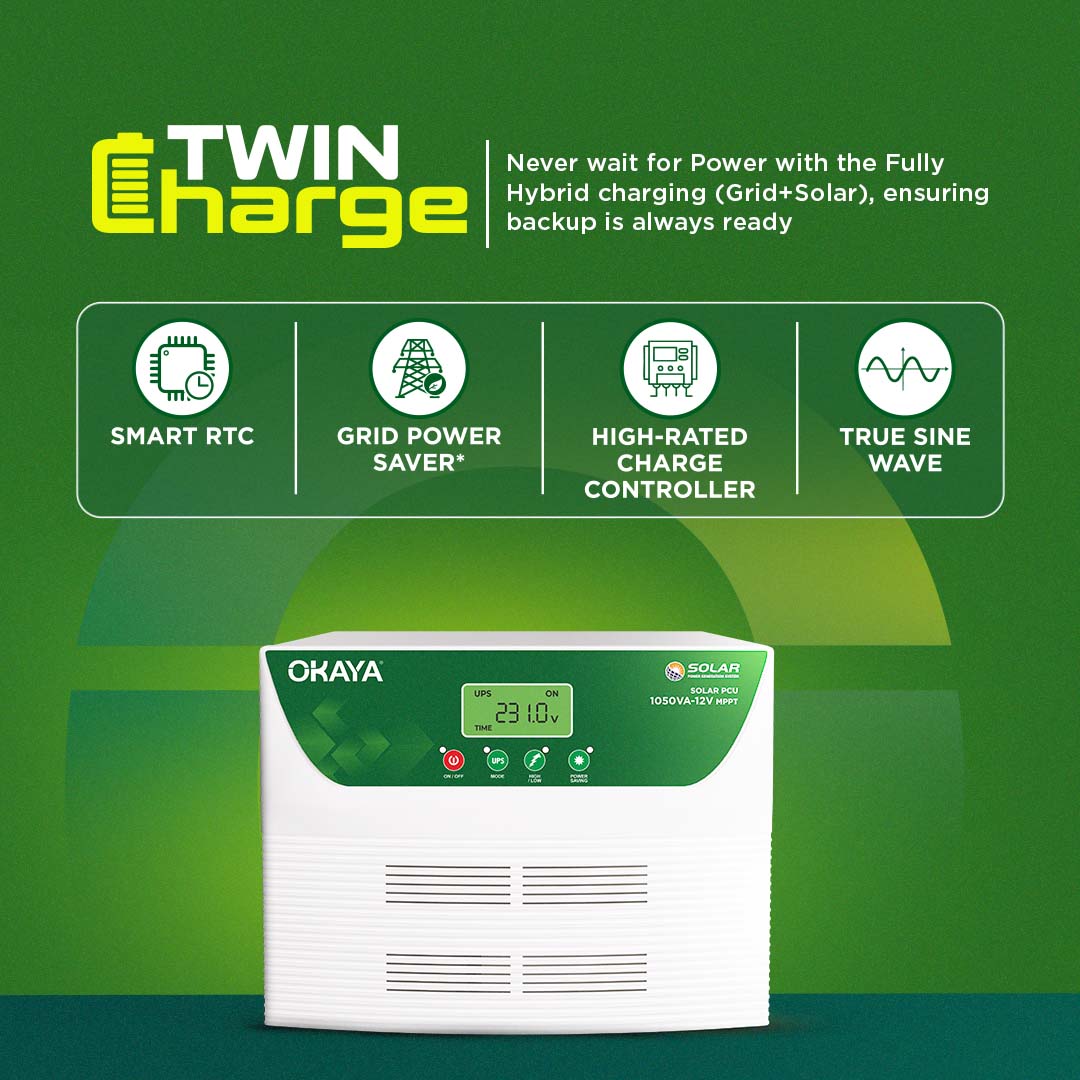

Smart RTC - Optimizes solar usage in real time for better daytime efficiency.
Grid Power Saver - Cuts grid consumption to reduce electricity bills.
High-Rated Charge Controller - Handles higher solar input for faster, healthier charging.
True Sine Wave - Delivers smooth, appliance-safe power output.
TwinCharge - Hybrid charging from Solar + Grid together, ensuring backup is always ready.
Technology: PWM – TwinCharge
Capacity (VA): 3kVA
Voltage: 24V
Warranty: 36 months
Dimensions (mm): 276 x 313.7 x 175.1
Weight: 16.6 kg
Display (LED) Indicators: Mains On, UPS On, SMF Battery, Battery Charging, Overload, Low Battery, Short Circuit / Fault
Buzzer Alerts: Beep: Overload, Low Battery, Mains Fuse Trip, Grid Fail, UPS Mode, Mains >100V
Continuous Alarms: Short Circuit, Over Temperature, Battery High, Over PV Voltage / Current beyond specifications
Certifications: BIS Certified, ISO Certified, CE Certified
Both run on 24V with identical 900W solar support and TwinCharge tech — the 3KVA's higher VA rating means it can sustain a larger combined appliance load simultaneously, useful once your essential circuit includes things like a water pump or multiple high-draw devices at once.
The 25V VOC rating defines the maximum open-circuit voltage your panel string can produce — most standard 12V-class panels stay within this comfortably, but if you're stacking panels in series, this is the number to check against before wiring.
16.6 kg — heavier construction reflecting the larger internal components needed to handle 3kVA continuously; factor this into your wall-mount planning.
Yes — pure sine wave output is built to handle high-starting-current loads like pumps and motors without instability, a common pain point with cheaper inverters that struggle with motor inrush current.
Short-circuit protection, reverse polarity fuse, and thermal safeguards work alongside the TwinCharge logic to prevent the overcharging risk that basic, non-intelligent PWM controllers can introduce on hot days.
36 months, with BIS, ISO, and CE certification.
