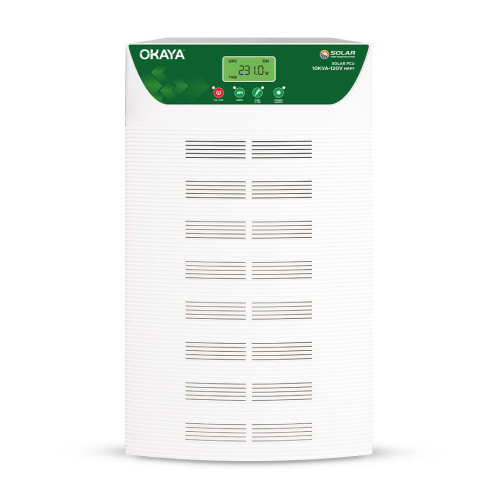

Industrial-grade 10KVA MPPT PCU for off-grid systems demanding high output and stable performance with 120V battery configurations.
Designed for institutional and commercial applications, the Okaya 10KVA-120V MPPT Solar PCU brings together industrial-grade durability and intelligent power management. Its high-capacity Dual MPPT architecture extracts the maximum from your solar panels and works efficiently with 120V battery setups for extended backup and reduced energy costs. From powering lights and fans to running mission-critical appliances, this PCU delivers stable and safe electricity with precision. The unit is designed for high-load environments with a compact footprint and robust design for prolonged usage in challenging conditions.
Higher Solar Generation – Advanced MPPT technology ensures superior energy conversion.
Smart Solar Optimization – RTC intelligence for real-time efficiency adjustments.
Dual-Channel Interleaved MPPT – Enhanced power tracking for optimized performance.
Smart Grid Power Savings – Reduce dependence on the grid and maximize solar utilization.
Adaptive Power Priority & Charging Control – Intelligent power management for all-season efficiency.
Intelligent-Power Saver Mode – Optimized energy consumption for long-term savings.
Technology: Dual Interleaved MPPT
VA: 10000
Volt: 120V
Warranty (months): 36
Dimensions (mm): 276x561.7x509
Display (LED) Indicator: Mains On, UPS On, SMF Battery, Battery Charging, Overload, Low Battery, and Short Circuit/Fault
Alarms: Low Battery, Overload, and Short-Circuit/Faults
Certifications: BIS Certified, ISO Certified, and CE Certified
The 10-battery 120V configuration handles 8850–11550W of PV capacity, noticeably above the 7.5KVA's 7900–8650W ceiling — if your institution or facility's solar array is sized closer to 10–11kW, this model's higher voltage platform is the appropriate match rather than overloading a 96V system.
VOC range 210–400V with PV input up to 40A — this returns to the same 40A input as the 48V-tier models, despite the much higher voltage, reflecting the larger PV array this unit is designed to support.
PV output current up to 83.5A — slightly below the 96V model's 84A, essentially comparable charging speed scaled to the larger battery bank.
Yes — explicitly positioned for institutional and commercial applications running everything from lighting to mission-critical appliances, with multi-layer protection against battery low, overload, overheating, PV reverse, short circuit, and mains faults.
Yes — its physical dimensions and 10-battery bank requirement mean it needs meaningfully more installation space than household-tier models; this is worth factoring into site planning before committing to this capacity.
36 months, with BIS, ISO, and CE certification.
