Efficient 2.2KVA off-grid solar PCU for residential and small commercial setups, supporting 24V battery banks and dual interleaved MPPT charging.

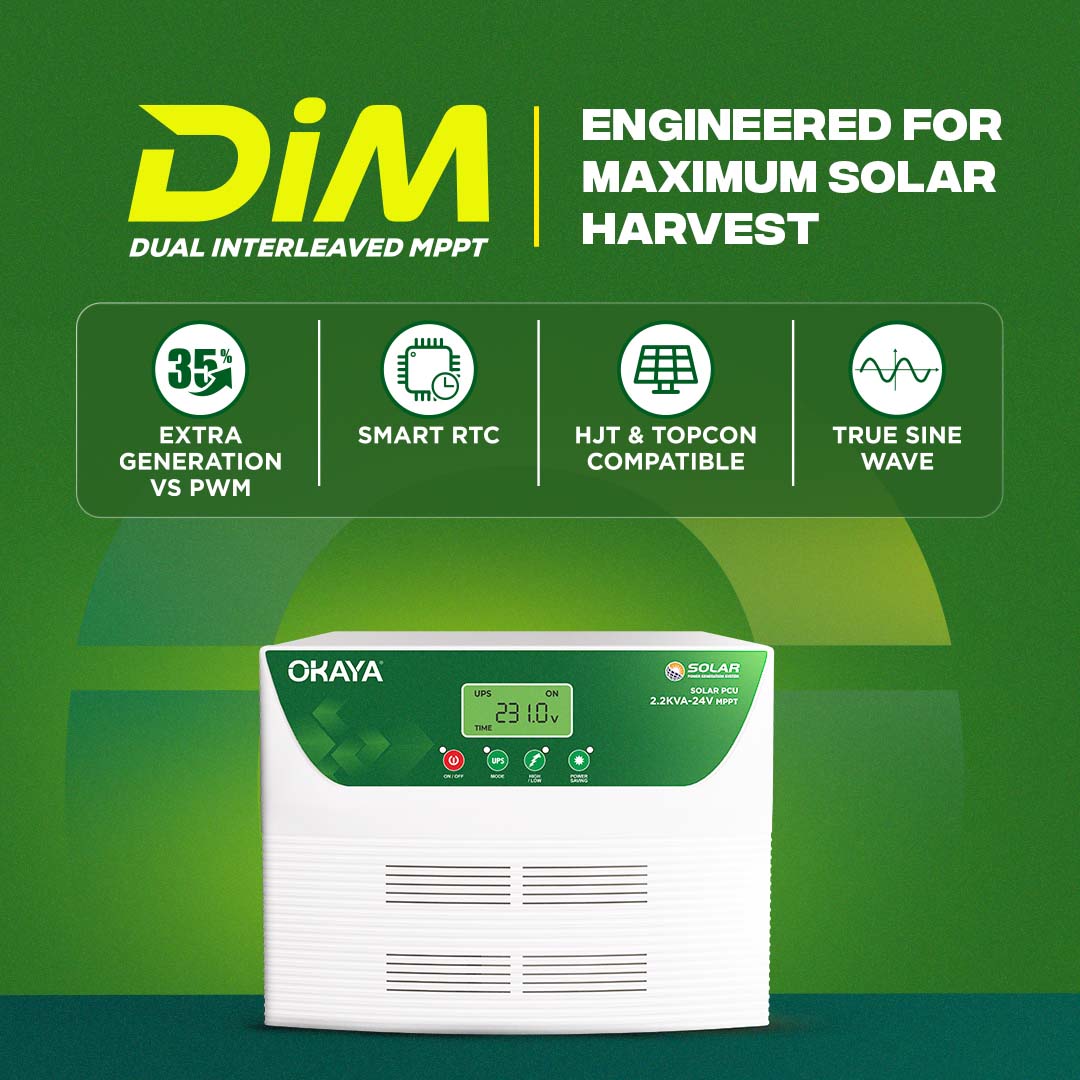

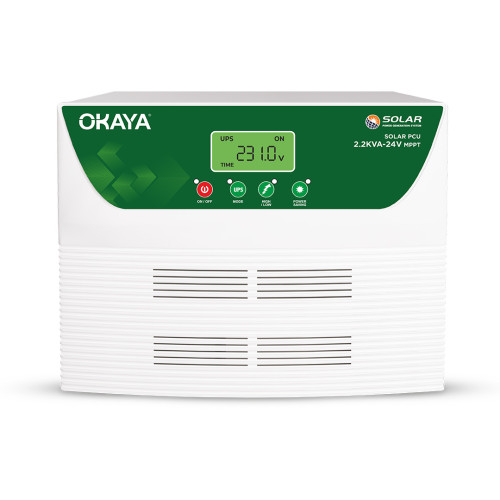

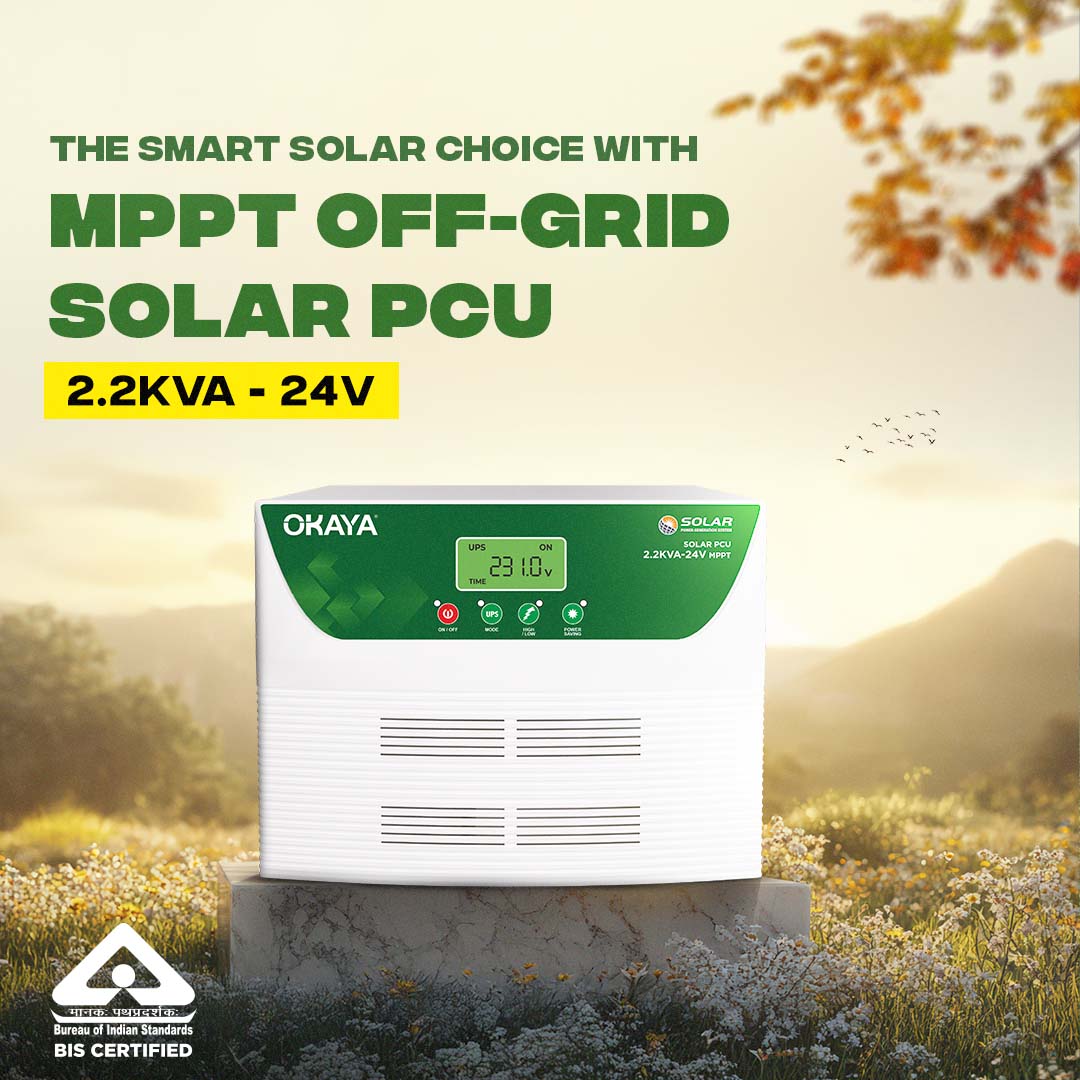

The Okaya 2.2KVA-24V Solar PCU is designed for households and small businesses seeking solar independence. It integrates Dual Interleaved MPPT (DiM) technology that actively tracks solar input to provide maximum energy harvest. Compatible with 24V battery systems, it offers seamless energy switching between solar, grid, and battery sources. The PCU also supports a range of battery types, making it versatile and adaptable. Real-time LED display provides easy access to system status and fault alerts, ensuring maximum uptime. It’s perfect for locations with erratic power supply or areas looking to reduce grid reliance.
Higher Solar Generation – Advanced MPPT technology ensures superior energy conversion.
Smart Solar Optimization – RTC intelligence for real-time efficiency adjustments.
Dual-Channel Interleaved MPPT – Enhanced power tracking for optimized performance.
Smart Grid Power Savings – Reduce dependence on the grid and maximize solar utilization.
Adaptive Power Priority & Charging Control – Intelligent power management for all-season efficiency.
Intelligent-Power Saver Mode – Optimized energy consumption for long-term savings.
Technology: Dual Interleaved MPPT
VA: 2200
Volt: 24V
Warranty (months): 36
Dimensions (mm): 276x314.5x232.8
Display (LED) Indicator: Mains On, UPS On, SMF Battery, Battery Charging, Overload, Low Battery, and Short Circuit/Fault
Alarms: Low Battery, Overload, and Short-Circuit/Faults
Certifications: BIS Certified, ISO Certified, and CE Certified
If your panel array is on the larger side or shading is uneven through the day, the MPPT version is worth the extra ₹15,500 — it pulls up to 98% conversion efficiency versus the 70–80% typical of PWM, and supports a bigger 2000–2550W panel array compared to the PWM model's 900W ceiling. If your setup is small and well-matched to the battery voltage, the PWM model saves you money without much practical loss.
PV capacity of 2000–2550W at VOC 44–110V, with PV input current up to 30A — meaningfully more panel headroom than the PWM 2200VA model allows on the same battery bank.
PV output current up to 83.5A, noticeably faster than the PWM 2200VA — one of the practical advantages of the MPPT premium at this capacity.
Yes — pure sine wave output is safe for routers, TVs, and computers, while also managing the startup surge from refrigerator compressors and small motors without instability.
Solar current, solar availability, load percentage, kWh generation, and battery charging/discharging status — real visibility into actual panel output, not just system on/off status.
It carries Okaya's standard Off-Grid PCU coverage of 3 years, alongside BIS, ISO, and CE certification — documentation worth checking for when comparing against uncertified alternatives at this capacity.
